Datasheet
Nothing less than magnificent
For premium large surface visualization, NEC’s fine pitch LED FA series modules provide standard resolution, direct view LED screens for applications in meeting spaces and exclusive signage. With a depth of just 5 cm, plus complete internal cabling, the FA series presents a sleek profile for a bezel-free viewing experience. With excellent viewing angles, consistent vibrant colours and superb brightness; the FA series delivers content that gets noticed. Designed with high quality components and maintenance access from the front, the FA series provides a display solution with longevity and good return on investment. The prime solution for boardrooms, auditoria, luxury retail environments and control rooms.
Benefits
- Ultimate Versatility – small 16:9 modules allowing excellent flexibility within the available space.
- Secure performance for demanding applications – with high-end components and redundant module design with additional power supply and data cards to ensure ongoing operations with a minimal loss of brightness levels.
- Large scale for perfectly detailed imagery – completely bezel-less design with high contrast rates deliver an unhindered viewing experience.
- Slim design – with a flush rear profile, LED modules can be integrated very close to the wall with minimal gap necessary due to very low heat emission.
- Visual excellence – high contrast and high brightness is inherent in LED delivery, benefit from NEC’s long lasting quality.
Product Information
Product Name

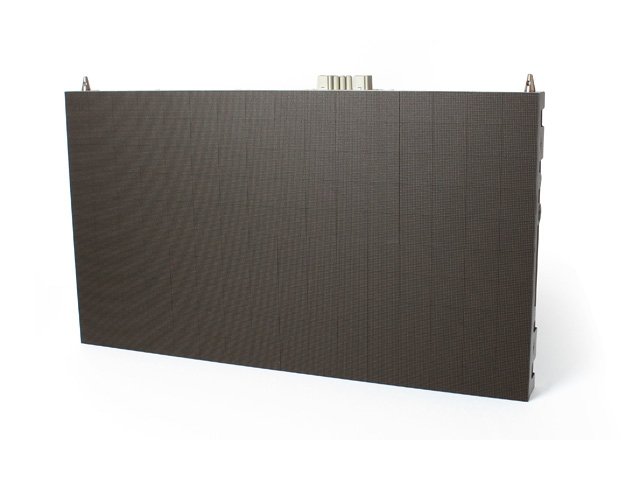

NEC LED-FA015i2
Product Group
1.5 mm Indoor FinePitch LED Module
Order Code
81000128
Display
Pixel Configuration
3-in-1 SMD (Black)
LED type
SMD (1010)
Pixel Pitch [mm]
1.5
Brightness (max.) [cd/m²]
800
Lifetime
100000 hrs (50% brightness)
Contrast Ratio (typ.)
5000:1
Viewing Angle [°]
170 horizontal / 170 vertical
Dimming Capability
256 levels
Colour Processing
16 bit
Colours [Trill.]
281
LED Driving Method
1/27 dynamic scan
Frame Rate [Hz]
50/60
Refresh Rate [Hz]
≤ 3840
Colour Temperature [K]
3000 - 9500
Screen Resolution
Resolution per m²
398892
Number of Pixel per module [dot]
384 x 216
Number of Pixel per card [dot]
96 x 108
Electrical
Power Consumption typ. [W]
275 per m² (normal use)
Power Consumption max. [W]
600 per m²
Environmental Conditions
Operating Temperature [°C]
-20 to 40
Operating Humidity [%]
10 to 80
Mechanical
Dimensions (W x H x D) [mm] per module
608 x 342 x 49
Weight [kg]
8.8
Additional Features
Special Characteristics
Cableless Connector for Data and Power; Flush Surface SMD Design; Humidity-proof SMD Design; Redundant Data Receiving Cards; Redundant Power Supplies
Manufacturer
NEC

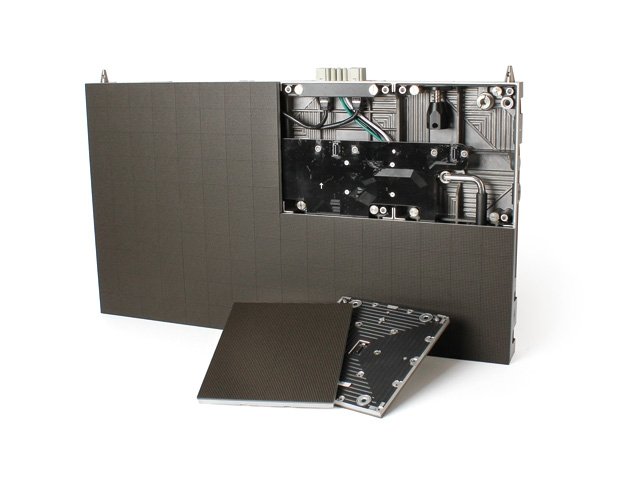

Serviceability
Front Service
IP Level
IP20
Certifications
CE; ETL; FCC Class A; RoHS
Warranty
3 years
Material
Aluminum Cabinet
