AirServer® Embedded Screen Mirroring Solution

Start presenting on time with native wireless screen mirroring

AirServer is the world’s leading universal screen monitoring solution providing exceptional compatibility and performance. Compatible with all modern phones, tablets and computers using the technologies buit into the device: AirPlay, Google Cast and Miracast. Share the entire screen or cast media from apps with low latency and high quality.

AirServer is a complete wireless presentation solution. No need for apps, cables or dongles to connect.


Screen Sharing made simple

AirServer supports AirPlay, Google Cast, Miracast and guest access along with tons of innovative features. No apps or dongles required.

Initiating effective collaboration in meeting rooms has never been easier to plan, install and operate makin it so simple to share content from your personal device to the large meeting room display.

Sharp/NEC’s ME and M series displays with embedded AirServer provide a sleek combination of intuitive screen sharing with professional display technology for your meeting rooms and huddle spaces.

Future-proof and upgradable, AirServer software is powered by a pre-installed modular SoC Raspberry Pi module which transforms your Sharp/NEC Mxx1 and MExx1 large format display into a universal screen mirroring receiver.

ScreenSharing
RPi Compute Module 4 + AirServer = 1x stream 1920 × 1080, 60 fps

Airplay-GoogleCast-Miracast

AirPlay + Google Cast + Miracast

With AirServer enabled on your Sharp/NEC screen, users can use their own devices such as a Mac or Windows PC, iPhone, iPad, Android phone and tablet or Chromebook to wirelessly mirror their display over to the Sharp/NEC display, instantly turning the room into a collaborative space.

Wirelessly project your desktop in meeting and huddle rooms without the need of additional dongles or apps.


Benefit from great additional Features

benefit_access-point

Built-in Guest Access Point
AirServer creates its own guest network with internet access so that guests can easily connect and project to the Sharp/NEC display.

benefit_digital-signage

Digital Signage
Display your own content-in-between sessions. AirServer supports custom backgrounds and browser-based digital signage solutions.

benefit_cast-from-apps

Cast from Apps
Cast your favourite media and other Chromecast-enabled apps, incl. DRM (Digital Rights Management) protected content, over to your Sharp/NEC display.

benefit_airplay-from-youtube-app

AirPlay from YouTube App
AirServer also supports AirPlay media from YouTube and other apps.

benefit_security

Security
Keep your network safe with enterprise security, flexible integration and automatic updates. All sessions are local and not sent over the internet.

benefit_touch-and-touchback

Touch and Touchback for Miracast
AirServer allows control of Windows with touch using an Sharp/NEC ME or M series interactive display in your meeting room.


Ease of Use

The customisable user interface simplifies getting started and provides instructions for first-time users.

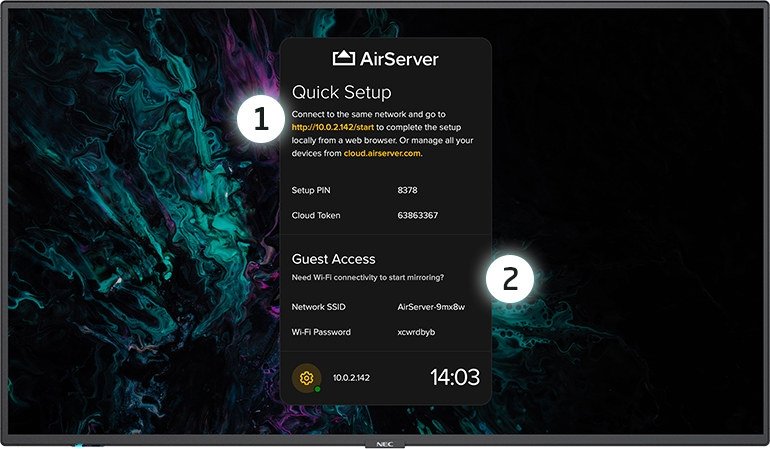

AirServer quick setup screenshot.

1 Quick Setup
Set up locally from a web browser.

2 Guest Access
Built-in secured Wi-Fi hotspot with access control.

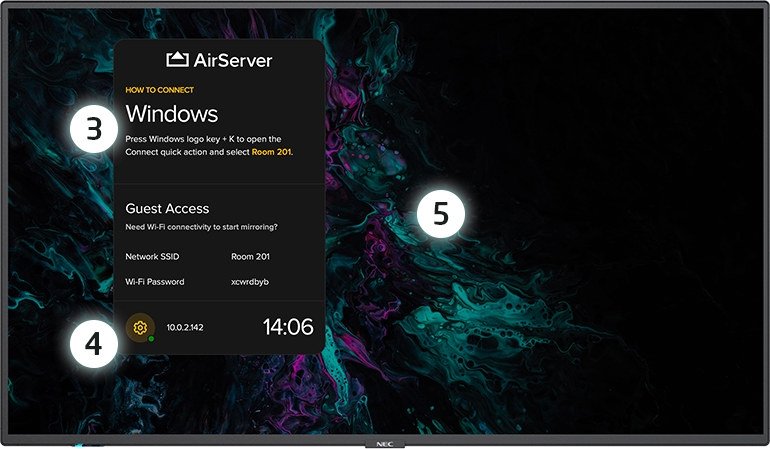

AirServer how to connect screenshot.

3 How to connect
Rotating instructions for Windows, macOS, Chrome OS, Android and iOS.

4 Quick Settings
Manage sessions and basic settings on a touch screen.

5 Personalisation
Customise your background and home screen layout.


Specifications – AirServer Embedded Screen Monitoring Solution

AirPlay
iOs, iPadOS and macOS, screen mirroring and content sharing, extend macOS display, code and password security
Google Cast
Android, Chrome OS and Google Chrome, screen mirroring and cast from apps with DRM, prompt security
Miracast
Android and Windows, screen mirroring, Miracast over infrastructure, extend Windows 10 desktop, touchback and pen support, code security
Guest Connectivity
Wi-Fi hotspot, 2.4 and 5 GHz channel selection, WPA2 security, access control (device only, internet only or internet + LAN)
Video Output
up to Full HD (1920 × 1080) at 60 fps
No. of Connections
1
Networking
1 × Gigabit LAN, 802.11ac/b/g/n Wi-Fi, IPv6 addresses, Proxy, 802.1X security
Automatic Updates
provides new features and security enhancements

More information on Sharp/NEC products incl. AirServer embedded screen mirroring solution
